Trough Movement |
 |

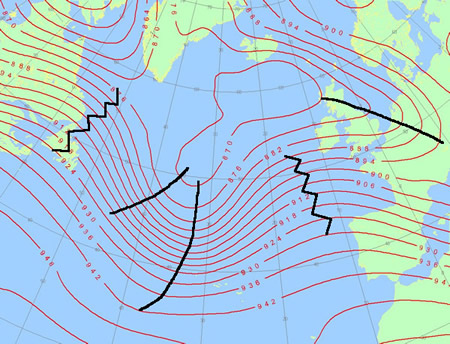

| How will the trough develop? Use the matrix below to best describe the evolution of the upper flow pattern over the next 6 hours. |
  |
Yes indeed the trough is sharpening. So what will this mean in terms of development?
|
No. The stronger flow is upwind of the trough and the flow is mainly zonal. This will not result in the trough becoming stationary.
|
No. The flow is mainly zonal it is therefore impossible for the trough to retrogress.
|
As we have discovered the trough is diffluent. A confluent trough is required for relaxation.
|
No. The strong flow on the upwind side the trough will not allow the trough to become stationary.
|
No. The strong flow on the upwind side the trough will not allow the trough to retrogress.
|
No. For the trough to disrupt the southern portion of a trough would advance, perhaps developing a cut-off circulation, whilst the opposite (residual) portion of the trough becomes quasi-stationary.
|
No. For the trough to disrupt the southern portion of a trough would advance, perhaps developing a cut-off circulation, whilst the opposite (residual) portion of the trough becomes quasi-stationary.
|
No. For the trough to disrupt the southern portion of a trough would advance, perhaps developing a cut-off circulation, whilst the opposite (residual) portion of the trough becomes quasi-stationary.
|
Yes, the trough will extend and progress.
|
No. The strong flow on the upwind side of the trough means it is unlikely to become stationary.
|
No. the flow is mainly zonal it is therefore imposible for the trough to retrogress.
