This page is based on a paper by J. L. Arreola, V. Homar, R. Romero, C. Ramis and S. Alonso from the Plinius Conference on Mediterranean storms held at Mallorca, Spain, October 2002.

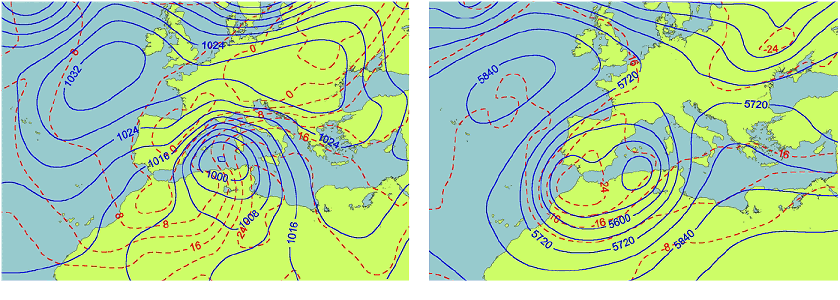

From the NCEP meteorological analysis on 11 November at 00:00 UTC (time of maximum intensity of the cyclone), we can see an upper-level deep cold trough with two centers which rotated about each other during the event. They advected a high amount of vorticity over the Mediterranean. At low levels warm advection northeast of the surface low was very strong. The pressure gradient over eastern Spain and the Balearic Islands was very high, inducing very strong winds.

Loading Questions ...

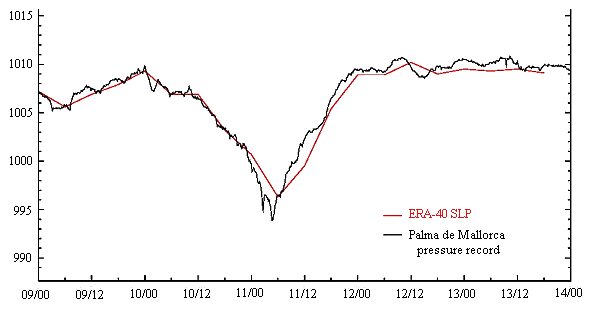

Pressure record at Palma de Mallorca (closest station to cyclone center) and ERA- 40 mslp analysis for 10–12 November 2001 at the nearest point of coordinates 2.6 E, 39.5 N. Taken from Genovés A. , Campins, J. and Jansá. Intense storms in the Mediterranean: a first description from the ERA-40 perspective. Advances in Geosciences, 7, 163–168, 2006

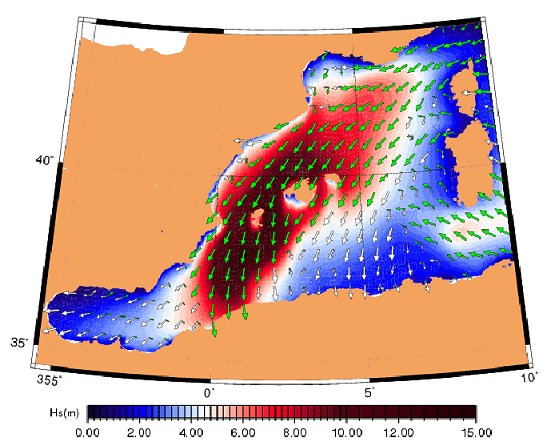

WAM significant wave height field for November the 11th, 00 UTC. [Background sea]: green arrows [Wind sea]: white arrows. [Whole sea]: colored scale in meters. After M. Gómez et. al "Oceanographic and atmospheric analysis of the 10-16 november 2001 storm in the western mediterranean" (Proceedings of the 4th EGS Plinius Conference held at Mallorca, Spain, October 2002)
