Climatology of Mediterranean cyclones

Below, a northen hemisphere chart is presented, with unlabelled isolines of percentage frecuency of cyclones. The chart corresponds to an average for the northern hemisphere winter, during the period 1899-1939.

EXERCISE: Click on the image to find the four major maxima of cyclone centers frecuency for this period.

(¡PLEASE!, DO NOT CHECK BEFORE HAVING COMPLETED THE EXERCISE the underlying image. That is important for the learning objectives to be achieved)


ToggleImage

Percentage frecuency of cyclone centers in squares 100.000 km^2, for the northern hemisphere, in winter, during the period 1899-1939, according to Pettersen, S., 1956: Weather Analysis and Forecasting in squares 100.000 km^, Graw Hill, New York. (Unlabelled)

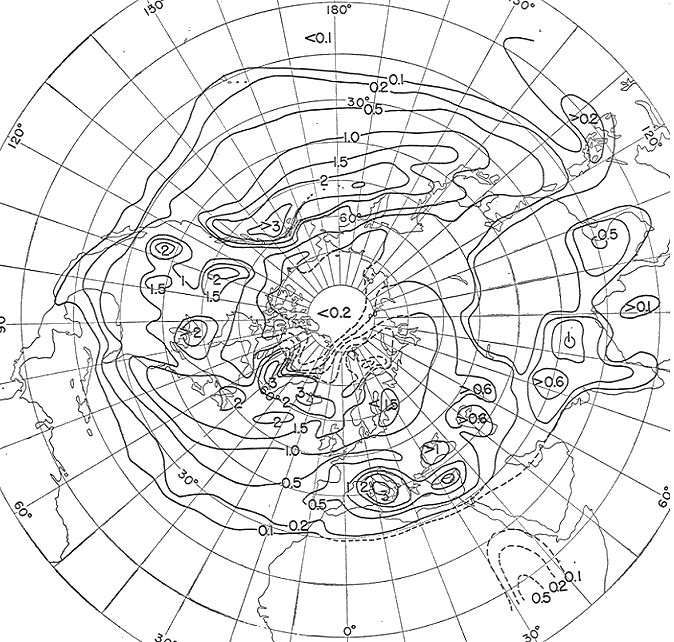

Percentage frecuency of cyclone centers, for the northern hemisphere, in winter, during the period 1899-1939, according to Pettersen, S., 1956: Weather Analysis and Forecasting, Graw Hill, New York.
Feedback
Close Feedback

Right! This area, west of Greenland coast, is one of the four major maxima of percentage frecuency of cyclone centers, for the northern hemisphere in winter.

Feedback
Close Feedback

Right! This area, on the pacific northeast corner, is one of the four major maxima of percentage frecuency of cyclone centers, for the northern hemisphere in winter.

Feedback
Close Feedback

Right! This area, west of Iceland, is one of the four major maxima of percentage frecuency of cyclone centers, for the northern hemisphere in winter.

Feedback
Close Feedback


Right! This area, ¡ON THE WESTERN MEDITERRANEAN!, is one of the four major maxima of percentage frecuency of cyclone centers, for the northern hemisphere in winter.Notice the secondary maxima over eastern Mediterranean, south of Ciprus island.

Feedback
Close Feedback

No. This area do not correspond to one of the four major maxima of percentage frecuency of cyclone centers, for the northern hemisphere in winter.
